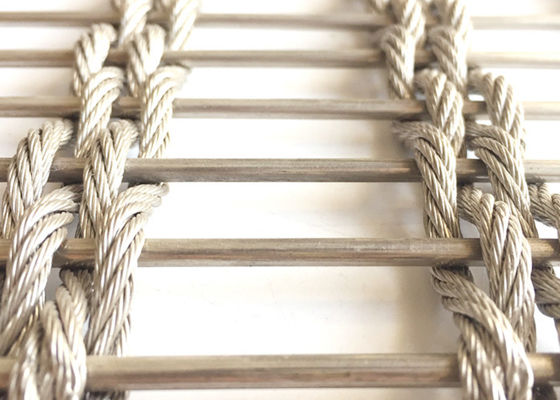

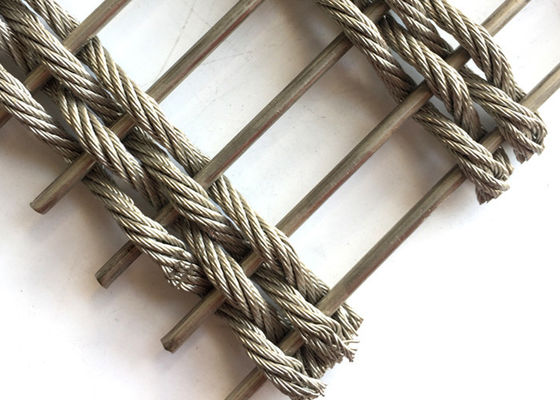

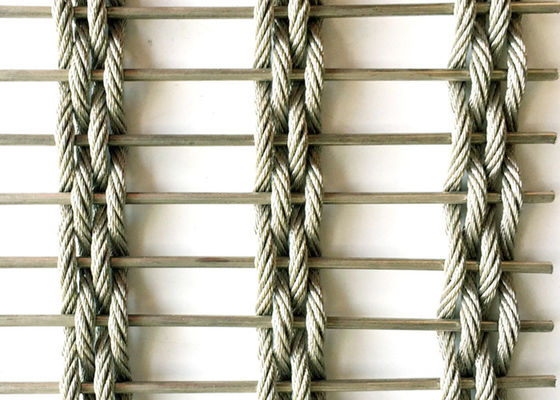

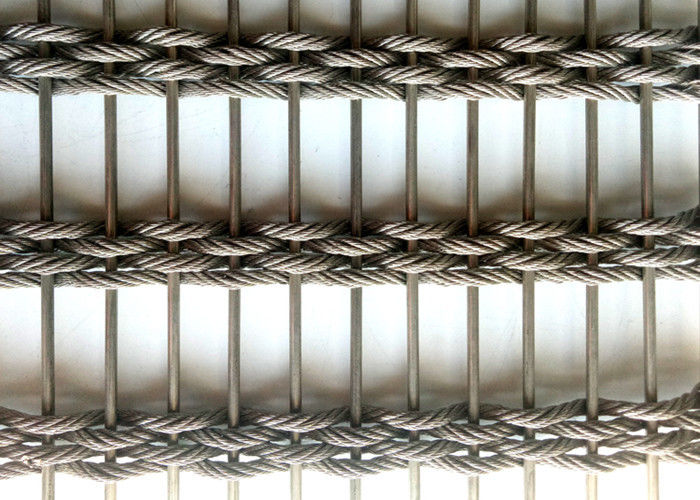

Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade

Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade
Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade

Large Image :  Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade

Product Details:
Place of Origin: China
Brand Name: SHUOLONG
Certification: ISO9000, SGS, ect
Model Number: XY-M4375
Payment & Shipping Terms:
Minimum Order Quantity: 10m2
Packaging Details: Each pcs/roll packing by paper, 1-4 rolls/1-50pcs in a wooden box.
Delivery Time: 14-21 days
Payment Terms: T/T
Supply Ability: 2000m2 / month

Flexible Woven 100x6m Stainless Steel Architectural Mesh Fabric Facade

Description
Product Name: Stainless Steel Architectural Mesh Material: SS304, SS316, SS316L
Rod Diameter: 3mm Rod Pitch: 15mm
Weight: 12.36kgs/m2 Opening Area: 66.3%
Mesh Thickness: 11mm Max Width: 6m
Max Length: 100m Surface Treatment: Free Oil
High Light:

flexible woven stainless steel architectural mesh

,

100x6m stainless steel architectural mesh

,

facade architectural woven wire mesh

Flexible Woven Mesh Fabric Facade For Stainless Steel Architectural Mesh



Stainless Steel Architectural Mesh Information:



Stainless steel architectural mesh is made of stainless steel rod and stainless steel wire (rope) under the action of pure machine controlled by computer. There are many kinds of patterns, beautiful and noble; Different patterns can have different application directions, and different effects will be obtained if different patterns are used for the same application. The maximum width of the woven wire mesh is 8.5m, and the length is unlimited.



It can be applied to the decoration of indoor and outdoor curtain walls, walls, ceilings, railings, front desk and partitions, floors, and even surround itself into a circle, and then put a bulb into it, it becomes a lamp. Stainless steel architectural mesh, which is simple, elegant and highly changeable, is a unique architectural decoration material, which adds an unparalleled sense of space to architects' architectural design. Through the perspective picture, the stainless steel building network presents people with a new vision. According to the change of time in a day, it can show people an infinitely changing flowing picture through the continuous change of shadows.



Stainless Steel Architectural Mesh data sheet:



Material Alu, SS304, SS316, Copper, ect Application Facade, Partitions, ect
Surface PVD, Paint, Antique Brass, ect Certificate ISO9000, SGS, ect
Weaving type Plain Woven Size Can be customized
Packing Wooden Case, Pallet, ect Color Can be customized



Stainless Steel Architectural Mesh Advantage​:



1, Good corrosion resistance
2, High hardness
3, Excellent impact resistance, explosion-proof and seismic performance
4, Good wind resistance and fire resistance
5, The types, colors and patterns of the surface are very rich
6, It can be painted and titanium plated into various colors, colorful and beautiful, giving you a different visual feast
7, It is easy to maintain, easy to repair, beautiful woven patterns and many options
8, Long service life
9, Green and environmentally friendly, with good sustainability
10, Easy to clean and take care of
11, A protective film is formed on the metal surface to effectively prevent the outside from eroding the inside of the metal, and the service life is greatly extended.
12, The appearance has strong texture, with oily moisturization and soft feel, and retains good metal texture.


Stainless Steel Architectural Mesh Application:


♦ Mesh facades
♦ Sun protection facades
♦ Facade cladding
♦ Wall coverings
♦ Ceiling systems
♦ Railing infill or acoustic systems



Company Introduction:


Hebei ShuoLong Metal Products Co,. Ltd is an professional ISO certificated manufacturer of architectural metal mesh products. Since year 2008, ShuoLong team invest 6 technical engineers and designers in the research, development of innovation decorative metal mesh production.
Shuolong architectural &decorative wire mesh, cable mesh, pc mesh, spiral mesh, gabion baskets and fences, defensive barriers are popular in the interior & exterior decoration, wired laminated glass industry, landscaping and flood barrier and Military defense field.
Based on more than 12 years experience of worldwide big and small architectural metal mesh projects.

Shuolong Stainless Steel Architectural Mesh Products help you gain below advantages:

► Effective support from the design stage, timely samples.
► Quick response for price inquire and solution within 4 hours.
► A1 fire-proof material, help your project pass LEEDS easily.
► Available for stainless steel, aluminum, brass, copper, GI steel, Galfan, etc.
► Professional support in wire mesh install accessories solutions.
► Strictly QC system TO keep all products of good quality!
► More than 300 Chinese and foreign projects operation experience!
► Help you to save cost.

Packing:


The packing is very important of architectural mesh,the good packaging can effectively protect products to get the mesh to customer smmothly.
According different mesh types,sizes and characteristics, shuolong make good package for each other service center about your sourcng requirement.
