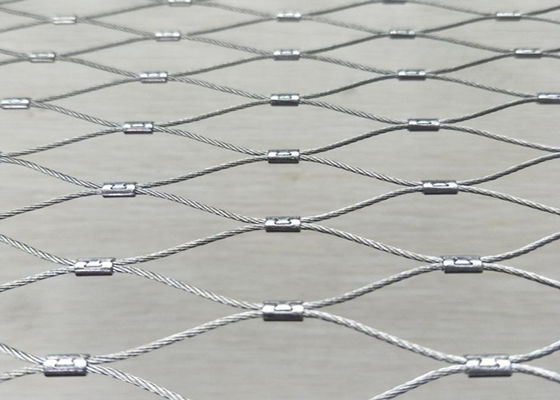

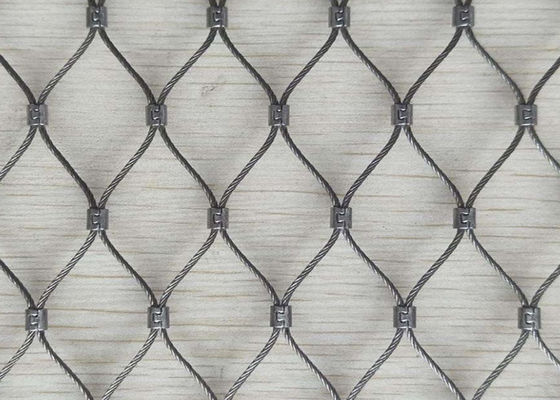

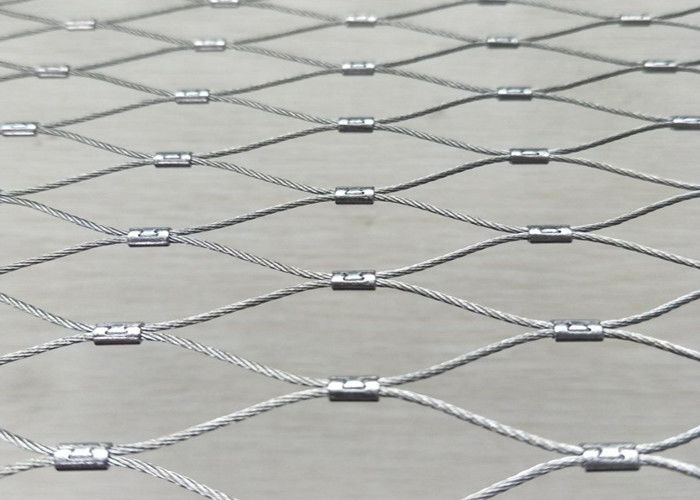

Braided Stainless Steel Wire Rope Mesh 210x210mm 7x19 Cable Structure

Braided Stainless Steel Wire Rope Mesh 210x210mm 7x19 Cable Structure
Braided Stainless Steel Wire Rope Mesh 210x210mm 7x19 Cable Structure Braided Stainless Steel Wire Rope Mesh 210x210mm 7x19 Cable Structure

Large Image :  Braided Stainless Steel Wire Rope Mesh 210x210mm 7x19 Cable Structure

Product Details:
Place of Origin: China
Brand Name: SHUOLONG
Certification: ISO9001, SGS
Model Number: SL-SW07
Payment & Shipping Terms:
Minimum Order Quantity: 10m2
Packaging Details: Packed in roll with plastic bag inside, carton box or wooden case outside.
Delivery Time: 14-21 days
Payment Terms: T/T
Supply Ability: 2000m2 / month

Braided Stainless Steel Wire Rope Mesh 210x210mm 7x19 Cable Structure

Description
Product Name: Hand Woven Mesh Material: Stainless Steel
Cable Diameter: 4.0mm Mesh Opening: 210 X 210mm
Surface Treatment: Free Oil Cable Structure: 7 X 1
Max Width: 8m Max Length: 100m
Color: Natural Color Application: Zoo
Highlight:

7x19 stainless steel wire rope mesh

,

210x210mm stainless steel wire rope mesh

,

Braided steel cable mesh

Braided Steel Wire Rope Protection Mesh For Hand Woven Mesh





Hand Woven Mesh Information:



Hand Woven Mesh raw materials are high-quality stainless steel 304, 316, 316L wire rope and stainless steel buckle.The steel wire rope net is a high-strength steel wire rope flexible net (diamond steel wire rope net, ring net, high-strength steel wire grid) as the main component. And supplemented by accessories such as anchor rods and support ropes to form the entire system. Cover and tighten the slope to prevent and control slope rock collapse, roll-off, blasting flying rocks and other hazards.



Hand Woven Mesh Data Sheet:



Ferruled Type
Item No.s Cable diameter Mesh Opening(W x H) Normal Break
  inch mm inch mm lbs.
SL-3212K 1/8 3.2 4.75 x 8.23 120 x 207.8 1,600
SL-3210K 1/8 3.2 4 x 6.9 102 x 176.7 1,600
SL-3290K 1/8 3.2 3.55 x 6.15 90 x 156 1,600
SL-3276K 1/8 3.2 3 x 5.2 76 x 131.6 1,600
SL-3251K 1/8 3.2 2 x 3.46 51 x 88.3 1,600
SL-2410K 3/32 2.4 4 x 6.9 102 x 176.7 920
SL-2490K 3/32 2.4 3.55 x 6.15 90 x 156 920
SL-2476K 3/32 2.4 3 x 5.2 76 x 131.6 920
SL-2460K 3/32 2.4 2.4 x 4.16 60 x 104 920
SL-2451K 3/32 2.4 2 x 3.46 51 x 88.3 920
SL-2076K 5/64 2.0 3 x 5.2 76 x 131.6 676
SL-2060K 5/64 2.0 2.4 x 4.16 60 x 104 676
SL-2051K 5/64 2.0 2 x 3.46 51 x 88.3 676
Knotted Type
Item No.s Cable diameter Mesh Opening(W x H) Cable Structure
  mm mm
SL-4021B 4.0 210 x 210 7 x 19
SL-4018B 4.0 180 x 180 7 x 19
SL-4015B 4.0 150 x 150 7 x 19
SL-4012B 4.0 120 x 120 7 x 19
SL-3021B 3.0 210 x 210 7 x 19
SL-3018B 3.0 180 x 180 7 x 7
SL-3015B 3.0 150 x 150 7 x 7
SL-2013B 3.0 120 x 120 7 x 7
SL-3010B 3.0 100 x 100 7 x 7
SL-3075B 3.0 75 x 75 7 x 7
SL-2018B 2.0 180 x 180 7 x 7
SL-2015B 2.0 150 x 150 7 x 7
SL-2012B 2.0 120 x 120 7 x 7
SL-2010B 2.0 100 x 100 7 x 7
SL-2075B 2.0 75 x 75 7 x 7
SL-2060B 2.0 60 x 60 7 x 7
SL-2050B 2.0 50 x 50 7 x 7
SL-1510B 1.5 100 x 100 7 x 7
SL-1575B 1.5 75 x 75 7 x 7
SL-1560B 1.5 60 x 60 7 x 7
SL-1550B 1.5 50 x 50 7 x 7



Hand Woven Mesh Features:



♦ Transparent stainless steel rope mesh structure;
♦ Durable and rust-resistant stainless steel cable mesh material;
♦ Flexible wire rope mesh panel to fit various design;
♦ Stainless steel wire rope zoo mesh provides absolute security;
♦ Hand woven wire cable mesh customized panel size is easy to install;
♦ Cost-free maintenance stainless steel rope mesh saves the budget.



Hand Woven Mesh Application:



Hand woven mesh can be used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, facade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.



RFQ



Q1.What is architectural mesh?
Produced from 80% recycled material, our wire mesh can be designed to fit virtually any architectural structure, inside or out. Because of the strength and aesthetic appeal of our stainless steel architectural mesh, it offers new and versatile fields of application in architecture.
Q2. What about the lead time?
A:We often ship in a few days from stock. Custom orders can normally be supplier in 1-2 weeks
Q3. Do you have any MOQ limit for product order?
A: Low MOQ, 5 square meter for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How can get a specific quotation from us?
A: 1. let us know your requirements or application.
2. let us know the size(length & width) and quantity you need?
3. Please inform us of your company' name, address, Phone number and Email.
4.Please inform us of the shipping need by air or sea.
We quote according to your requirements or our suggestions.
Q6. How you would like to take payment?
A: 1.via Alibaba Trade insurance orders
2.We issue an invoice to pay our bank account.
Q7. PAYMENT
1. T/T 100% in advance. (Direct delivery, fast delivery)
2. T/T 30% as deposit, other 70% balance before shipment.(Need to wait until the final payment arrives, about 5 days will be delayed.)



Hand Woven Mesh Package:



1. Packed in roll with plastic bag inside, carton box or wooden case outside.

2. Packed as customers' requirements.
