Product Details:
|
| Product Name: | Hand Woven Mesh | Material: | SS316L |
|---|---|---|---|
| Cable Diameter: | 4.0mm | Mesh Opening: | 50x50mm |
| Cable Structure: | 7 X 7 | Surface Treatment: | Free Oil |
| Max Length: | 60m | Max Width: | 8m |
| Color: | Natural Color | Application: | Zoo Enclosure |
| High Light: | 60m Hand Woven Mesh,SGS Hand Woven Mesh,wire rope mesh Plain Weave |
||

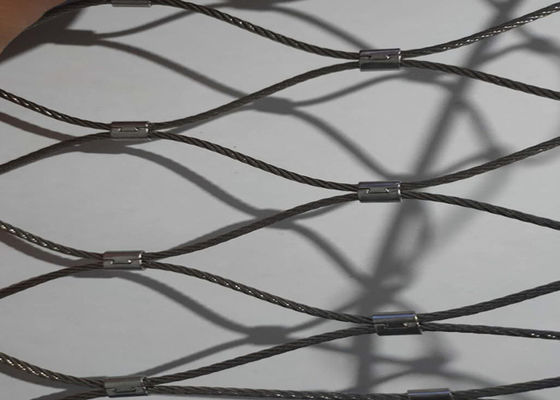

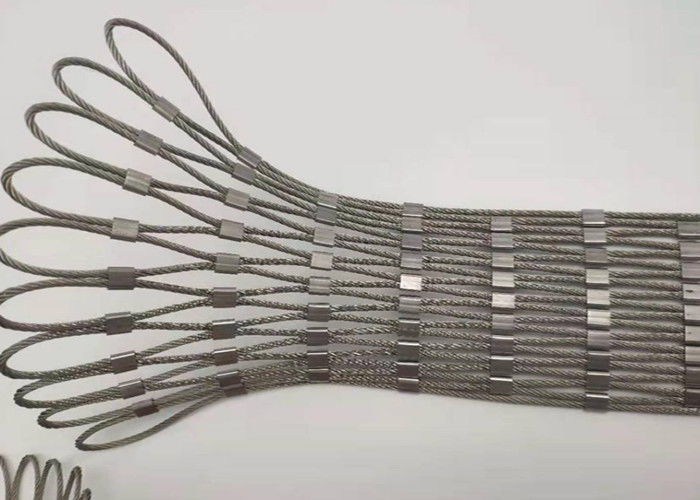

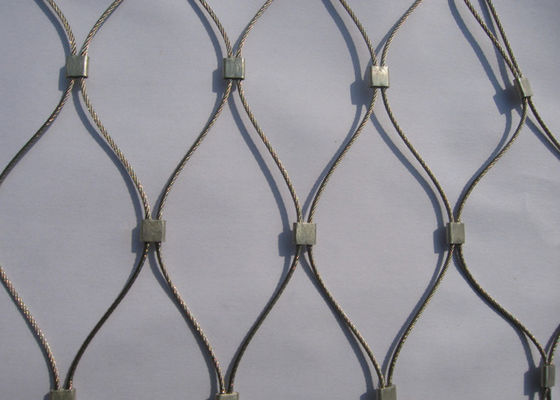

Plain Weave SS316L Rope Mesh Fence Bird Screening For Hand Woven Mesh
Hand Woven Mesh Information:
Hand Woven Mesh is used high quality stainless steel wire cable, the stainless steel grade includes type 304, type 304 L, type 316, type 316L. The structures of the stainless steel wire cable have 7 x 7 and 7 x 19.
Hand Woven Mesh has high flexibility, high protection strength and easy spreadability. Adapt to any slope terrain, the installation procedure is standardized and systematic. Die-cutting installation method is adopted, with short construction period and low construction cost.
Hand Woven Mesh Data Sheet:
| Ferruled Type | |||||
| Item No.s | Cable diameter | Mesh Opening(W x H) | Normal Break | ||
| inch | mm | inch | mm | lbs. | |
| SL-3212K | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1,600 |
| SL-3210K | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 | 1,600 |
| SL-3290K | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1,600 |
| SL-3276K | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1,600 |
| SL-3251K | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1,600 |
| SL-2410K | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| SL-2490K | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| SL-2476K | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| SL-2460K | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| SL-2451K | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| SL-2076K | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| SL-2060K | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| SL-2051K | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| Knotted Type | |||||
| Item No.s | Cable diameter | Mesh Opening(W x H) | Cable Structure | ||
| mm | mm | ||||
| SL-4021B | 4.0 | 210 x 210 | 7 x 19 | ||
| SL-4018B | 4.0 | 180 x 180 | 7 x 19 | ||
| SL-4015B | 4.0 | 150 x 150 | 7 x 19 | ||
| SL-4012B | 4.0 | 120 x 120 | 7 x 19 | ||
| SL-3021B | 3.0 | 210 x 210 | 7 x 19 | ||
| SL-3018B | 3.0 | 180 x 180 | 7 x 7 | ||
| SL-3015B | 3.0 | 150 x 150 | 7 x 7 | ||
| SL-2013B | 3.0 | 120 x 120 | 7 x 7 | ||
| SL-3010B | 3.0 | 100 x 100 | 7 x 7 | ||
| SL-3075B | 3.0 | 75 x 75 | 7 x 7 | ||
| SL-2018B | 2.0 | 180 x 180 | 7 x 7 | ||
| SL-2015B | 2.0 | 150 x 150 | 7 x 7 | ||
| SL-2012B | 2.0 | 120 x 120 | 7 x 7 | ||
| SL-2010B | 2.0 | 100 x 100 | 7 x 7 | ||
| SL-2075B | 2.0 | 75 x 75 | 7 x 7 | ||
| SL-2060B | 2.0 | 60 x 60 | 7 x 7 | ||
| SL-2050B | 2.0 | 50 x 50 | 7 x 7 | ||
| SL-1510B | 1.5 | 100 x 100 | 7 x 7 | ||
| SL-1575B | 1.5 | 75 x 75 | 7 x 7 | ||
| SL-1560B | 1.5 | 60 x 60 | 7 x 7 | ||
| SL-1550B | 1.5 | 50 x 50 | 7 x 7 | ||
Hand Woven Mesh Features:
♦ Transparent stainless steel rope mesh structure;
♦ Durable and rust-resistant stainless steel cable mesh material;
♦ Flexible wire rope mesh panel to fit various design;
♦ Stainless steel wire rope zoo mesh provides absolute security;
♦ Hand woven wire cable mesh customized panel size is easy to install;
♦ Cost-free maintenance stainless steel rope mesh saves the budget.
Hand Woven Mesh Application:
Hand woven mesh can be used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, facade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
Hand Woven Mesh Package:
1. Packed in roll with plastic bag inside, carton box or wooden case outside.
2. Packed as customers' requirements.
