Product Details:
|
| Place Of Origin: | Hebei,China | Product Name: | Hand Woven Mesh |
|---|---|---|---|
| Material: | Stainless Steel | Rope Structure: | 7 X 7 |
| Mesh Opening: | 50x50mm | Surface Treatment: | Free Oil |
| Max Width: | 6m | Max Length: | 50m |
| Weave Style: | Plain Weave | Application: | Facade |
| High Light: | 100x100 flexible wire mesh,anti impact wire mesh for animal enclosures,100mm metal rope fence |
||

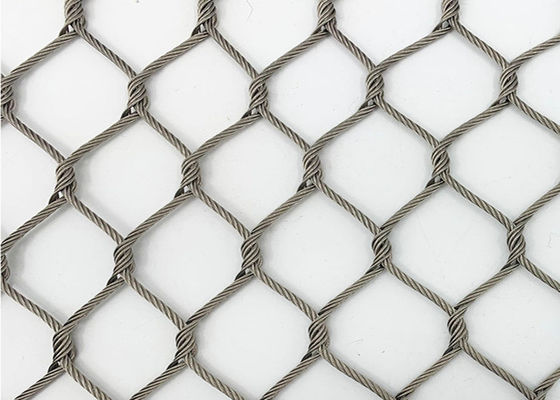

Stainless Steel Wire Rope Zoo Protective Mesh Fence For Hand Woven Mesh
Hand Woven Mesh Information:
Hand Woven Mesh is composed of four main parts: steel wire rope, support rope, and pressure relief ring. It is composed of steel wire rope net or ring net (wire grid when intercepting small rocks), fixing system, pressure drop ring and steel column. It is versatile, easy to install, and has a long service life. It can be customized according to customer requirements.
Hand Woven Mesh Advantage:
Stainless steel cable nets provide beautiful, cost-competitive, durable, and lightweight effects for zoo fences. It provides safety and is an easy-to-install alternative to animal enclosures.
Hand Woven Mesh Data Sheet:
| Ferruled Type | |||||
| Item No.s | Cable diameter | Mesh Opening(W x H) | Normal Break | ||
| inch | mm | inch | mm | lbs. | |
| SL-3212K | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1,600 |
| SL-3210K | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 | 1,600 |
| SL-3290K | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1,600 |
| SL-3276K | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1,600 |
| SL-3251K | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1,600 |
| SL-2410K | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| SL-2490K | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| SL-2476K | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| SL-2460K | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| SL-2451K | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| SL-2076K | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| SL-2060K | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| SL-2051K | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| Knotted Type | |||||
| Item No.s | Cable diameter | Mesh Opening(W x H) | Cable Structure | ||
| mm | mm | ||||
| SL-4021B | 4.0 | 210 x 210 | 7 x 19 | ||
| SL-4018B | 4.0 | 180 x 180 | 7 x 19 | ||
| SL-4015B | 4.0 | 150 x 150 | 7 x 19 | ||
| SL-4012B | 4.0 | 120 x 120 | 7 x 19 | ||
| SL-3021B | 3.0 | 210 x 210 | 7 x 19 | ||
| SL-3018B | 3.0 | 180 x 180 | 7 x 7 | ||
| SL-3015B | 3.0 | 150 x 150 | 7 x 7 | ||
| SL-2013B | 3.0 | 120 x 120 | 7 x 7 | ||
| SL-3010B | 3.0 | 100 x 100 | 7 x 7 | ||
| SL-3075B | 3.0 | 75 x 75 | 7 x 7 | ||
| SL-2018B | 2.0 | 180 x 180 | 7 x 7 | ||
| SL-2015B | 2.0 | 150 x 150 | 7 x 7 | ||
| SL-2012B | 2.0 | 120 x 120 | 7 x 7 | ||
| SL-2010B | 2.0 | 100 x 100 | 7 x 7 | ||
| SL-2075B | 2.0 | 75 x 75 | 7 x 7 | ||
| SL-2060B | 2.0 | 60 x 60 | 7 x 7 | ||
| SL-2050B | 2.0 | 50 x 50 | 7 x 7 | ||
| SL-1510B | 1.5 | 100 x 100 | 7 x 7 | ||
| SL-1575B | 1.5 | 75 x 75 | 7 x 7 | ||
| SL-1560B | 1.5 | 60 x 60 | 7 x 7 | ||
| SL-1550B | 1.5 | 50 x 50 | 7 x 7 | ||
Hand Woven Mesh Features:
1. The raw materials are high-quality stainless steel 304, 316, 316L wire rope and stainless steel buckle.
2. Close to nature, green and environmentally friendly.
3. It is non-corrosive, fatigue-resistant, impact-resistant and has a large breaking force. The overall structure is sturdy and durable, with good perspective, luxurious appearance and novel form. It is a big landscape in itself.
4. Lightweight, high strength, good flexibility, fatigue resistance, impact resistance, large breaking force, solid and durable overall structure, and a service life of more than 30 years;
5. There are no restrictions on design, and designers can design various graphics and structures at will.
6. It is easy to install and can be constructed on any structure.
Hand Woven Mesh Application:
Hand woven mesh not only for zoo protection. It is also widely used in fence net facilities such as highways, railways, highways, etc
Hand Woven Mesh Package:
1. Packed in roll with plastic bag inside, carton box or wooden case outside.
2. Packed as customers' requirements.
