Product Details:
|
Product Name: | Hand Woven Mesh | Material: | Stainless Steel |
---|---|---|---|
Place Of Origin: | Hebei,China | Rope Structure: | 7 X 7 |
Mesh Opening: | 50x50mm | Surface Treatment: | Free Oil |
Max Width: | 6m | Max Length: | 50m |
Weave Style: | Plain Weave | Application: | Facade |
Highlight: | SHUOLONG Hand Woven Mesh,Facade stainless steel rope mesh netting,7x7 rope mesh fencing |

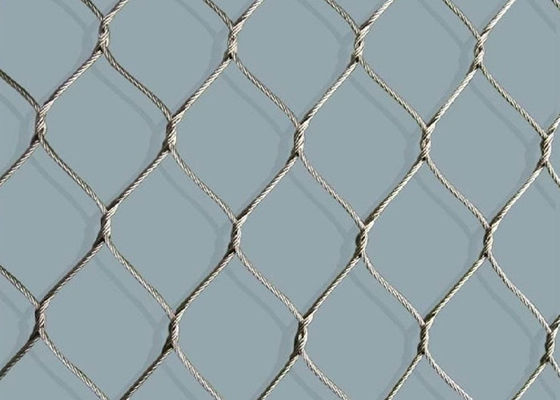

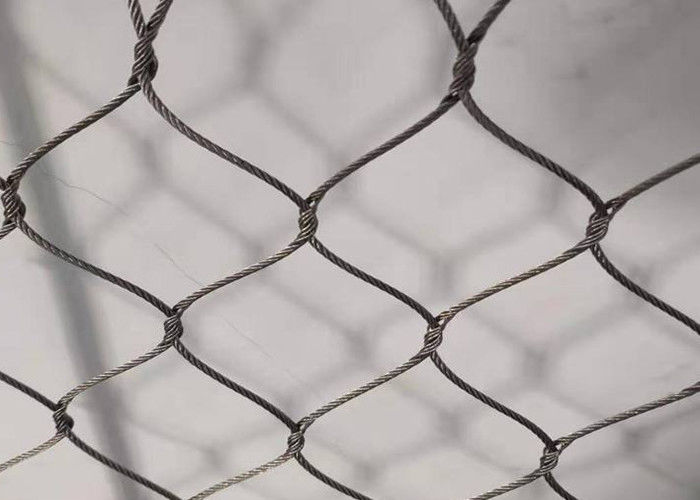

Wire Rope Braided Protective Mesh Fence For Hand Woven Mesh
Hand Woven Mesh Information:
Hand Woven Mesh is composed of four main parts: steel wire rope, support rope, and pressure relief ring. It is composed of steel wire rope net or ring net (wire grid when intercepting small rocks), fixing system, pressure drop ring and steel column. It is versatile, easy to install, and has a long service life. It can be customized according to customer requirements.
Hand Woven Mesh Advantage:
Stainless steel cable nets provide beautiful, cost-competitive, durable, and lightweight effects for zoo fences. It provides safety and is an easy-to-install alternative to animal enclosures.
Hand Woven Mesh Data Sheet:
Ferruled Type | |||||
Item No.s | Cable diameter | Mesh Opening(W x H) | Normal Break | ||
inch | mm | inch | mm | lbs. | |
SL-3212K | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1,600 |
SL-3210K | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 | 1,600 |
SL-3290K | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1,600 |
SL-3276K | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1,600 |
SL-3251K | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1,600 |
SL-2410K | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
SL-2490K | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
SL-2476K | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
SL-2460K | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
SL-2451K | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
SL-2076K | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
SL-2060K | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
SL-2051K | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
Knotted Type | |||||
Item No.s | Cable diameter | Mesh Opening(W x H) | Cable Structure | ||
mm | mm | ||||
SL-4021B | 4.0 | 210 x 210 | 7 x 19 | ||
SL-4018B | 4.0 | 180 x 180 | 7 x 19 | ||
SL-4015B | 4.0 | 150 x 150 | 7 x 19 | ||
SL-4012B | 4.0 | 120 x 120 | 7 x 19 | ||
SL-3021B | 3.0 | 210 x 210 | 7 x 19 | ||
SL-3018B | 3.0 | 180 x 180 | 7 x 7 | ||
SL-3015B | 3.0 | 150 x 150 | 7 x 7 | ||
SL-2013B | 3.0 | 120 x 120 | 7 x 7 | ||
SL-3010B | 3.0 | 100 x 100 | 7 x 7 | ||
SL-3075B | 3.0 | 75 x 75 | 7 x 7 | ||
SL-2018B | 2.0 | 180 x 180 | 7 x 7 | ||
SL-2015B | 2.0 | 150 x 150 | 7 x 7 | ||
SL-2012B | 2.0 | 120 x 120 | 7 x 7 | ||
SL-2010B | 2.0 | 100 x 100 | 7 x 7 | ||
SL-2075B | 2.0 | 75 x 75 | 7 x 7 | ||
SL-2060B | 2.0 | 60 x 60 | 7 x 7 | ||
SL-2050B | 2.0 | 50 x 50 | 7 x 7 | ||
SL-1510B | 1.5 | 100 x 100 | 7 x 7 | ||
SL-1575B | 1.5 | 75 x 75 | 7 x 7 | ||
SL-1560B | 1.5 | 60 x 60 | 7 x 7 | ||
SL-1550B | 1.5 | 50 x 50 | 7 x 7 |
Hand Woven Mesh Features:
(1) Light weight, soft and great buffer ability.
(2) High flexibility.
(3) High strength and resistant.
(4) Good anti-climbing ability.
(5) Excellent perspectivity.
(6) Resistant to rust and long work life.
Hand Woven Mesh Application:
Hand woven mesh not only for zoo protection. It is also widely used in fence net facilities such as highways, railways, highways, etc
Hand Woven Mesh Package:
1. Packed in roll with plastic bag inside, carton box or wooden case outside.
2. Packed as customers' requirements.
